Reference EXW Price
Market Price:
US $3000 /set
Wholesale Price:
US $2800 /set
Service hotline:
+86-0769-81520080
Voltage(V):
51.2
Capacity(Ah):
460
Email:
qh112807@163.com
Origin:
Guangzhou, China

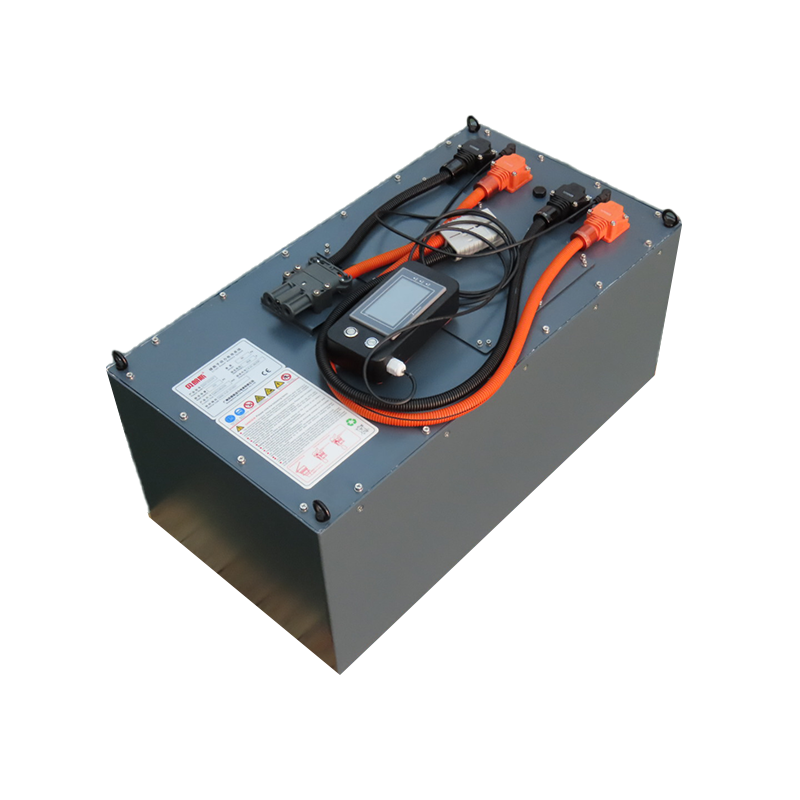

| Index | Parameter |
|---|---|
| Battery brand | GSGT |
| Battery type | LiFePO₄ |
| Battery model | LFP46016S2P |
| Voltage (V) | 51.2 |
| Capacity (Ah) | 460 |
| Forklift brand | TOYOTA |
| Installation size(mm) | 990*545*635 |
| Weight (KG) | 800 |
| Operating voltage range | 42.4V-58.4V |
| Self-discharge | ≤3.5%/month |
| Management system | BMS |
| Charging temperature | 0℃-55℃ |
| Discharging temperature | -30℃-55℃ |
| Index | Parameter |
|---|---|
| Number of cells (PCS/set) | 32 |
| Combination method | 16S2P |
| Discharge rate | 1C |
| 80%DD Deep cycle times | 3000+ |
| Recommended charger | 48V200A( 2.3 hours) |
| Communication protocol | RS485/CAN |
| Storage temperature | -30℃-60℃ |
| Storage humidity | ≤75%RH |
| Wooden box size(mm) | 1150*700*850 |

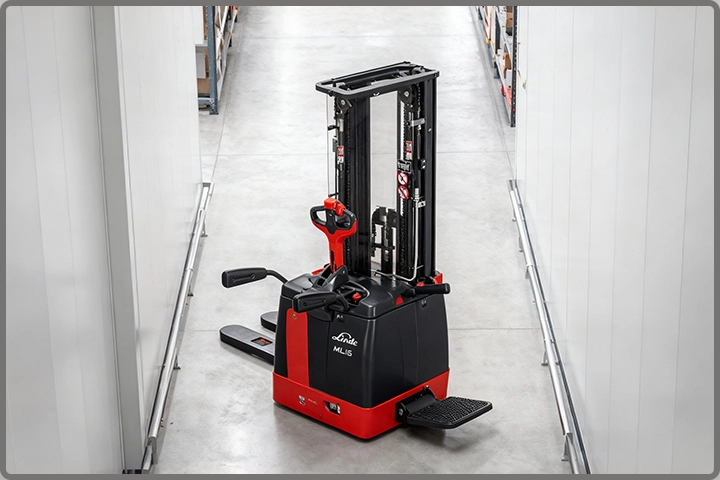

| Application forklift model | 8FBN15 |
| HS code | 85076000 |
| Shipping | EXW&CIF&FOB&DDP |
| Certificate | CE&UN38.3 |

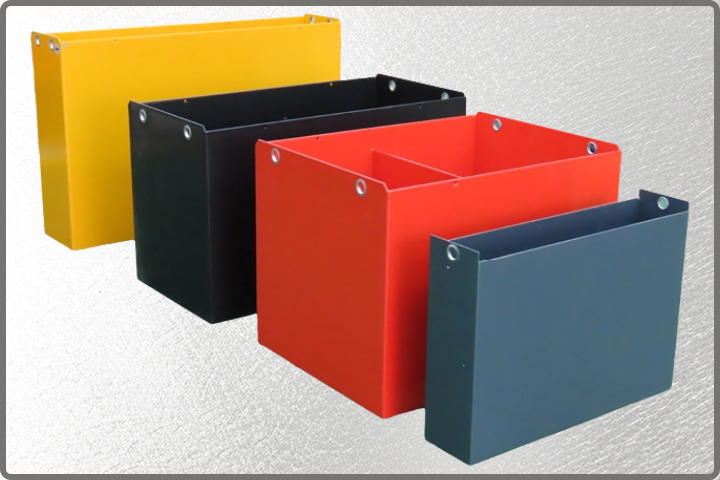

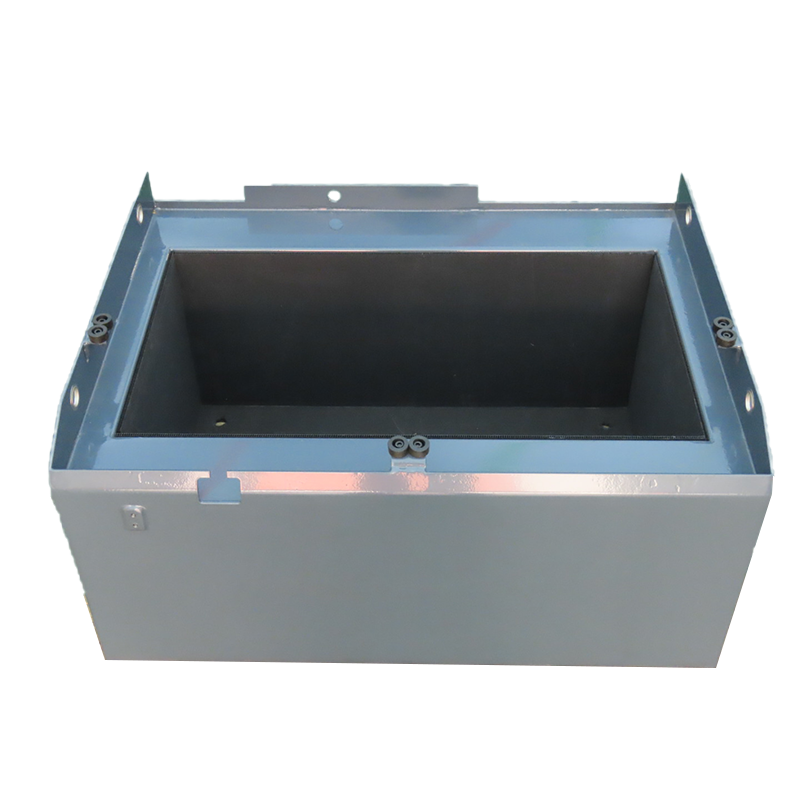

Iron Case
The color of the iron case is customizable, which can match the visual needs of different application scenarios

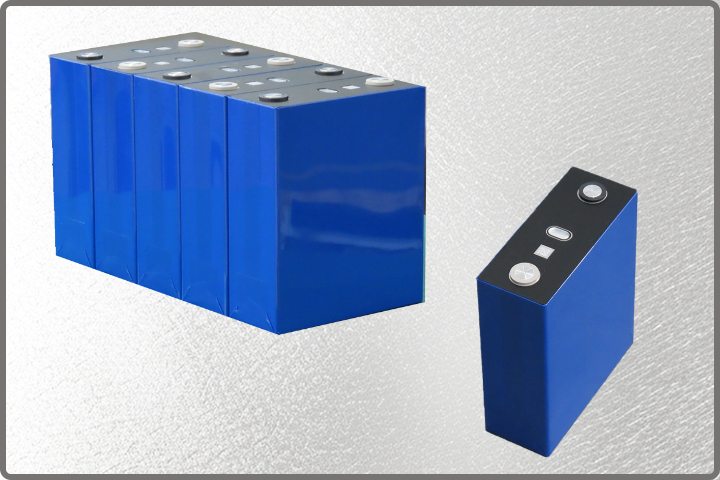

Battery Cell
Multiple cell capacity specifications are available to flexibly meet the battery life requirements of different devices

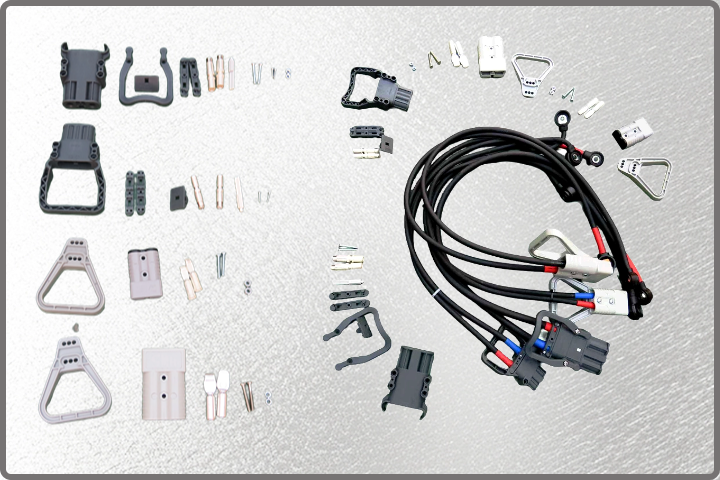

Plug Accessories
Plug models are selectable on demand, compatible with the interface standards of various devices

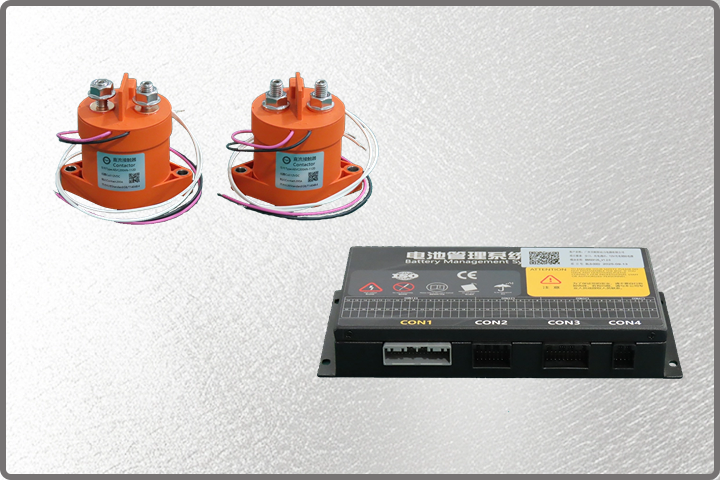

Buss Relay and BMS
Equipped with a Buss relay and BMS (Battery Management System) which provides double protection for the safe and stable operation of the battery

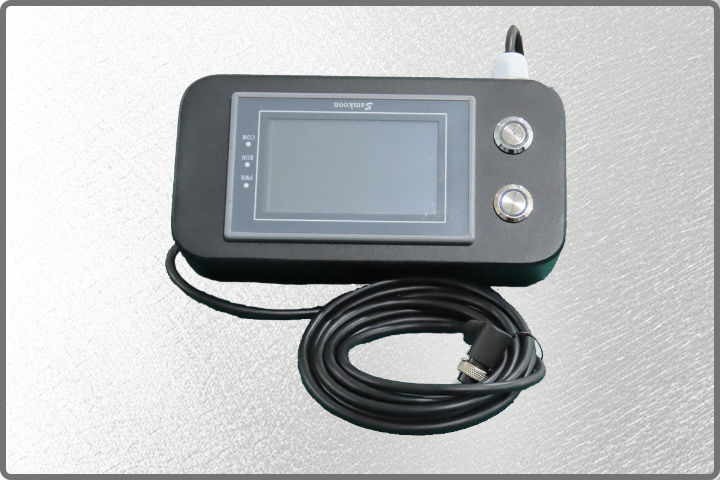

Display Screen
Equipped with a visual data display screen, it allows real-time and clear viewing of the battery's operating parameters

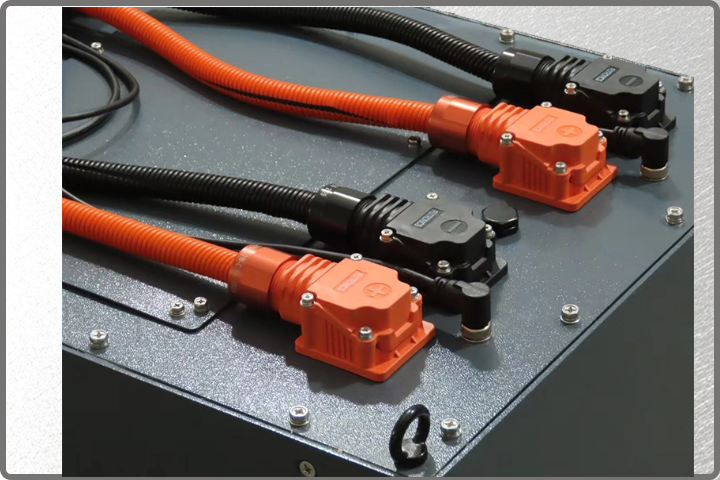

American Standard Cable
Uses American standard cables, complies with general electrical safety standards, and is suitable for multiple application scenarios

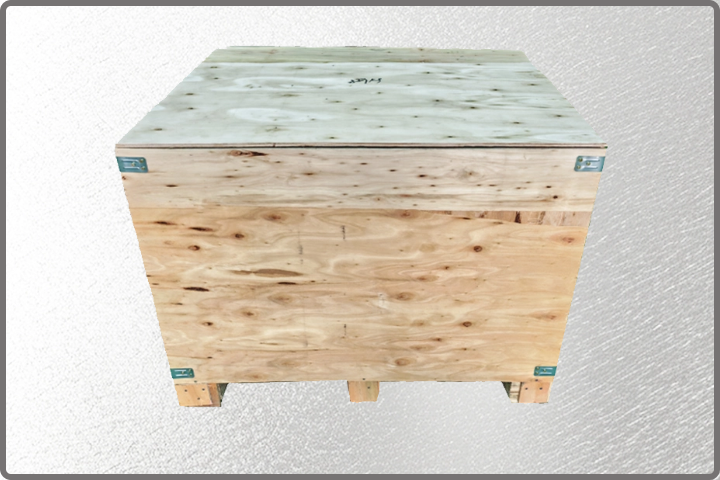

Wooden case package
Adopts wooden box packaging design, which can effectively buffer the impact during transportation and protect the battery from damage

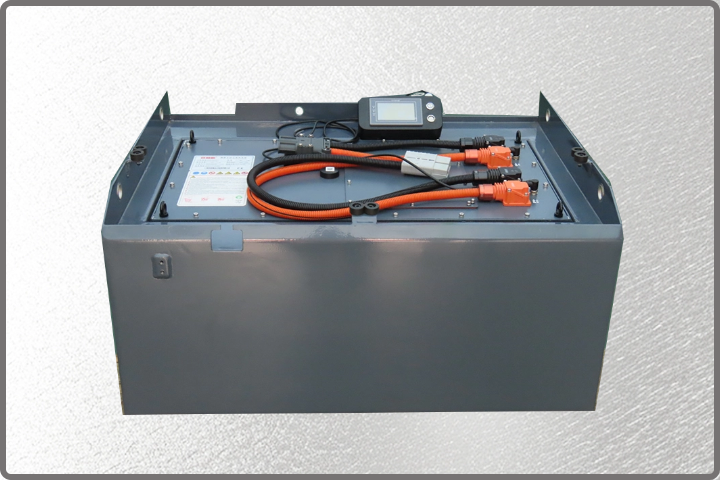

IP65 Waterproof Rating
With IP65 waterproof rating, it can resist splashing water and dust intrusion, suitable for outdoor humid environments

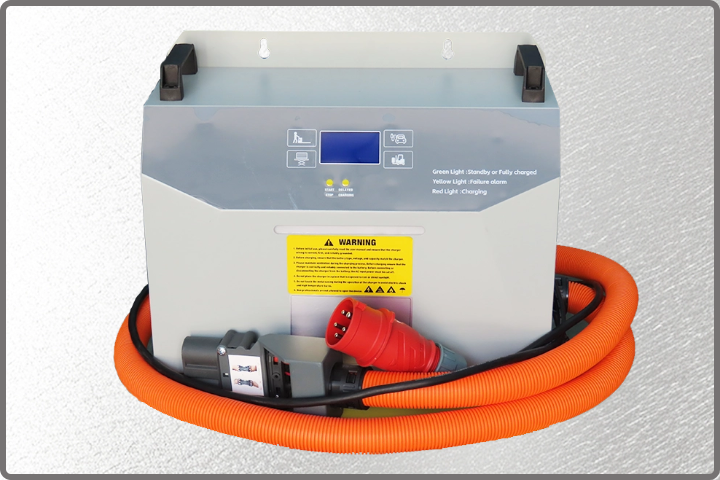

Diversified models of chargers
Discover our extensive lineup of lithium battery-specific matching chargers—with multiple models to satisfy various power requirements
Q1: Are you a battery manufacturer?
A: Yes, we produce the full range of lithium iron phosphate battery packs.
Q2: Where are your main markets?
A: Our main markets are distributed throughout China, as well as in the Middle East, Southeast Asia, North America, Europe and other countries.
Q3: What is your mode of trade?
A：CIF、EXW、DDP、FOB.
Q4: How long is the delivery time for your products?
A: Under normal circumstances, the production cycle for regular models is 20 to 25 days, while the production time for non-standard customized models depends on the order quantity.
Q5: How long is the warranty period for the lithium iron phosphate batteries you produce?
A: The warranty period for our lithium battery cells is 5 years / 10,000 hours, whichever comes first.
Q6: What is the outer packaging of your batteries like?
A: Our products are usually packed in wooden pallets or wooden crates.
Q7: Does your company accept OEM or ODM?
A: Yes, but everything must be legal and compliant, and trademark authorization is required.
